A CUT ABOVE

On board Turquoise Yachts' 53m Jewels

Wide shot of Jewels

There could be no more fitting a name than Jewels for a boat that celebrates such palatial splendour. Cecile Gauert takes a shine to Turquoise Yachts’ first collaboration with designer Luiz De Basto.

ERAY ALTAY

The name of Turquoise Yachts’ new 53-metre, Jewels, can be understood in many ways. One of the interpretations is that it refers to the amazing collection of stones, metals and fabrics on board, but it’s also a yacht designed for the comfort and privacy of precious family members. Delivered in May 2023, she has had a couple of lives already. She was born as Tala, featuring an elegant, raised pilothouse design by Miami-based Luiz De Basto. She had six guest cabins, a large beach club and a spacious sundeck. Tala was De Basto’s first collaboration with Turquoise on a built project, but the designer knew the owner from Turquoise’s sister company, Dutch superyacht builder Oceanco.

The designer applied his cerebral design approach to deceive the eyes; the yacht appears much leaner than she is. Seated at his desk in his Miami office years after he did the original rendering, he sketches quickly with a sure hand to demonstrate how he achieved the look. The bold black-and-white drawing produced in seconds is a mere section of the yacht, but you can recognise it immediately.

Exterior of Jewels

ERAY ALTAY

ERAY ALTAY

The trick to achieving the slimming effect comes from two strong lines. A diagonal line on the back of the sculptural superstructure comes up from the swim platform to the mast and then comes sharply down to the pilothouse’s windshield. Visually, a sharp triangle on top of the superstructure in combination with the yacht’s long bow and band of windows make the profile dynamic. What is behind the strong diagonal virtually disappears to the eyes, explains De Basto, which effectively diminishes any bulkiness. It works like vertical stripes on an item of clothing.

“The yacht has a very high volume. It’s 713 gross tonnes, but it does not look like it,” says the designer. “Usually when you get to that number, the design looks heavy. My objective was to make the exterior less bulky and give a feeling of a forward dynamic movement. It is modern and forward-looking.”

The beach club area of Jewels

ERAY ALTAY

ERAY ALTAY

The long foredeck is also useful to carry two tenders and jet skis, which in turn allowed the stern to be dedicated to a generous beach club connected to a large swim platform. From any angle, the yacht looks leaner than it really is, with a generous 9.3-metre beam that contributes to the high interior volume.

“Visually I like the contrast of white and blue,” says De Basto, although he originally envisioned a darker blue for the hull colour than Jewels currently has. The lighter blue hull shade was a request from a new owner who purchased the in-build yacht in 2020. He was attracted by the contemporary design and had liked the yacht Razan that Turquoise delivered in 2016. After 77-metre Go, Jewels is the second yacht from Turquoise to feature this vibrant blue colour, which could become a signature for the shipyard.

A staircase on Jewels

ERAY ALTAYThe yacht is designed for the comfort and privacy of family members

ERAY ALTAYThe yacht is designed for the comfort and privacy of family members

However, it’s a yard first in terms of how the lustrous finish was achieved. The shipyard recently invested in new filler application technology.

“One of the features of superyachts, which make them so handsome, is their exterior paint,” says Özlem Yurdakul, the shipyard’s project manager. Turquoise adopted a new technique to apply the unseen but all-important filler (the material between the metal and the first coats of paint) on its hulls to perfect its finishes. More consistent than human application, the automated spray helps avoid air bubbles that can result in paint degradation, explains Yurdakul.

The use of colour became the distinguishable theme, influencing the selection of fabrics for soft furnishings and marbles in the bathroom

The mid aft seating

ERAY ALTAY

ERAY ALTAY

The hull colour was virtually the only change on the outside, which is as De Basto visualised it. On the inside, however, the owner had a very different idea for what was originally to be a contemporary and light interior. The steel and aluminium yacht was already under construction when he purchased it, but the interior had not yet been built. With the owner’s guidance, the Turquoise team and London-based designer H2 Yacht Design reinvented Tala as Jewels, a floating family palace with nine cabins.

“We worked extensively with the yard at the beginning of the project to meet the clients’ wishes of nine guest cabins, including a well-proportioned owner’s suite. The biggest challenge for the yard was adding the lower deck aft cabin. This required access from the main saloon as well as reducing space in the engine room to make room for a guest bathroom. I can’t imagine many yards would have been so accommodating of this client request,” says H2’s design director, James Bermudez.

Exterior of the Jewels

ERAY ALTAY

ERAY ALTAY

The foyer of Jewels

ERAY ALTAY

ERAY ALTAY

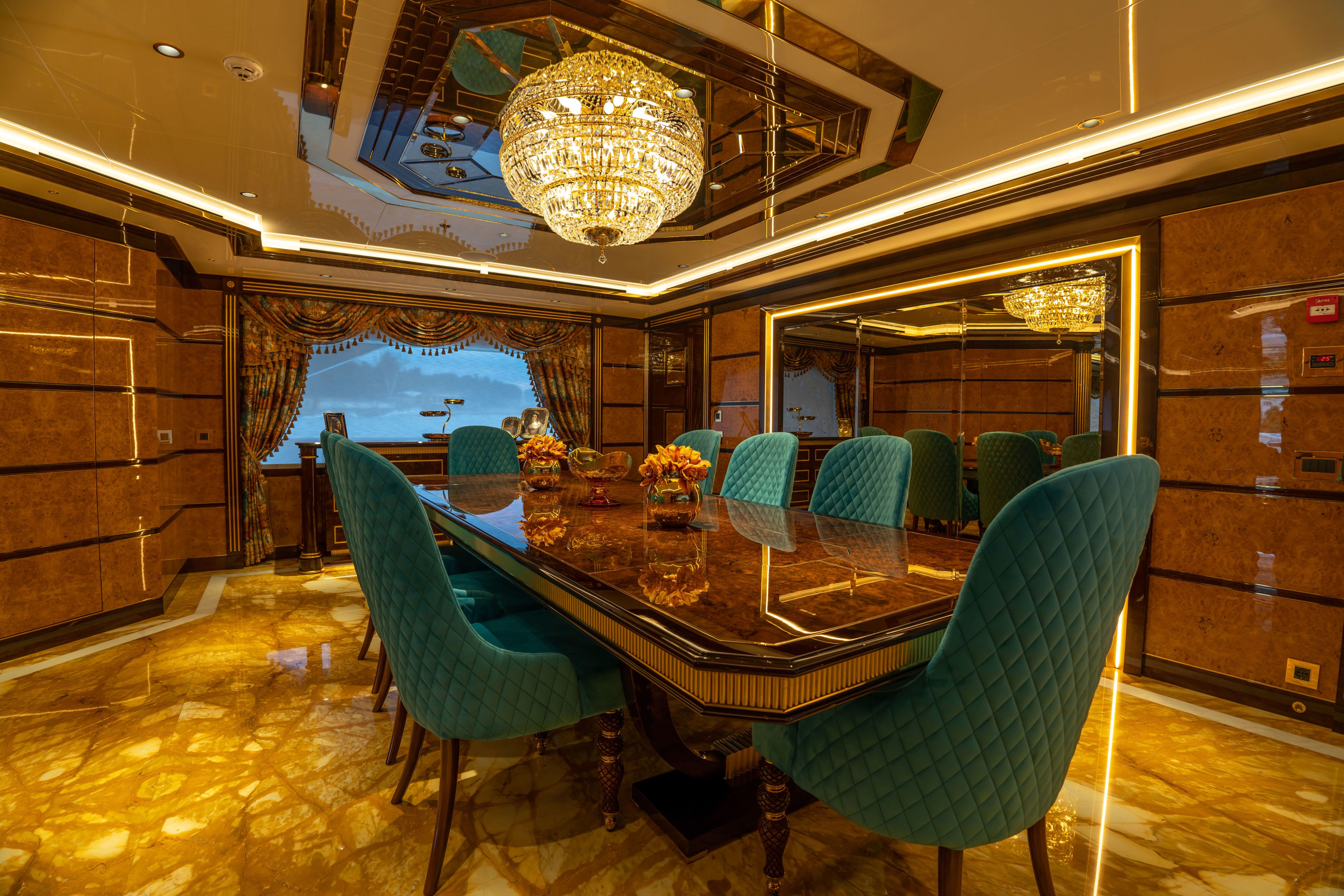

The dining room

ERAY ALTAY

ERAY ALTAY

Item 1 of 3
Exterior of the Jewels

ERAY ALTAY

ERAY ALTAY

The foyer of Jewels

ERAY ALTAY

ERAY ALTAY

The dining room

ERAY ALTAY

ERAY ALTAY

Jewels’ 9.3m beam and long foredeck have enabled the stern to be devoted to a generous beach club and substantial swim platform. The Giallo Siena marble on the floor echoes the golden details on the table and chairs; The design uses elements from the baroque, rococo and neoclassical periods

The shipyard converted a good section of what was originally the beach club into a cabin with its own entrance. This in turn required extensive engineering, especially given the yard’s aggressive goals for sound and vibration levels. Built like a jewel box, the yacht has multiple layers of insulation, floating floors and deep carpets to create luxurious silence inside. The shipyard works with outside consultants but also has a very complete in-house database from its previous projects to go on. Using a combination of techniques and materials, they achieved very good sound results. “We managed to achieve noise levels of 37.1 in the VIP cabin and 38.1 in the owner’s stateroom while travelling at 14.5 knots. Furthermore, we made sure vibration levels throughout were negligible,” says Yurdakul.

On the inside, Jewels is a treasure trove, much like the palaces that grace the shores of the Bosphorus in Istanbul, where she came into existence

Forward of what is now a good-sized cabin on the aft section of the lower deck is the engine room and, while creating private access to the cabin, the builder naturally had to preserve access to the engine space. “We completely changed the design of that area so that it would comply with all rules and regulations (the yacht is built according to Lloyd’s rules). We upgraded the engineering of sounds and vibrations there and we achieved a good result. At very high speed, it may not be as quiet as the other guest cabins, but the client is happy with the result.”

On the bridge deck, what was intended as a staff cabin was converted to a guest cabin, and the original captain’s cabin was moved from the starboard to the port side, where it became another guest cabin. This, of course, implied a new circulation pattern. However, the changes did not require upsizing generators or the Heinen & Hopman HVAC system, which was sufficient.

ERAY ALTAY

ERAY ALTAY

On the inside, Jewels is a treasure trove, much like the palaces that grace the shores of the Bosphorus in Istanbul, where she came into existence. “If you visit the Dolmabahçe Palace, you will understand [the inspiration],” says Sema Güçer Sukas, a naval architect and engineer who heads Turquoise’s interior department. The palace, which was home to six sultans from 1856 to 1924, blends elements from the baroque, rococo and neoclassical periods during a time of increased European influence on Ottoman culture and art.

The interior decor is by H2 Yacht Design, which has a long track record working in Turkey. “I have worked in Turkey for more than 30 years,” says H2 founder Jonny Horsfield, whose first project with the shipyard was the classically decorated Talisman C. “For a lot of clients now, [a yacht] is more of a home from home than a traditional yacht,” he says.

The interior is a fantasy; curtains fall in lustrous folds, gold rope embellishes the furniture and fabrics are in rich coloursrs

Interior view of the salon

ERAY ALTAY

ERAY ALTAY

This certainly can be said of this very personal interior, which was created by lead designer Bermudez, according to the client’s wishes.

“Initial proposals focused on a more contemporary deco style using rich walnut burrs with stainless inlays and bevel-edged mirrors. But sometimes clients have a clear vision about the direction they want to take with the interior theme. Subtle walnut burrs and gloss wenge finishes were combined with bolder sycamore burrs and flame mahogany, all with high-gloss lacquers. The use of colour became the distinguishable theme, influencing the selection of fabrics for soft furnishings through to marbles in the bathrooms,” says Bermudez.

Alternative view of the salon

ERAY ATLAYFabric colours are deep greens, rich purples, reds and vibrant blues, while the marble floors are heated for comfort for bare feet

ERAY ATLAYFabric colours are deep greens, rich purples, reds and vibrant blues, while the marble floors are heated for comfort for bare feet

Curtains fall in lustrous folds, gold rope embellishes furniture and crystals shimmer under the light. Fabric colours are deep greens, rich purples, reds and vibrant blues. Carpets are thick and soft. The marble floors are heated for comfort for bare feet. The interior is a fantasy, blending influences and periods, at times referencing the French Empire style with lion heads on the furniture – a detail the client liked and wanted to repeat. There is no literal interpretation of any given style, however. “It’s more of an eclectic mix of what the client felt conveyed a sense of luxury,” says Bermudez. “He shared several images as we developed the interior, ranging from his favourite armchair at home to the colour of his French blue loafers.”

Interior of the owner's suite

ERAY ALTAY

ERAY ALTAY

One significant difference with previous interiors that Bermudez and H2 have created is that, due to Covid-19, they had very little in-person contact with the client and the shipyard. “Design supervision and the selection of locally sourced materials like textiles for soft furnishings is an important part of the design process. Unfortunately, we weren’t able to be present for this important phase, so this was very much driven directly by the client,” says Bermudez.

This offered the shipyard’s interior team a rare opportunity to work directly with the owner, who was very hands-on. A frequent charterer and previous yacht owner, he took a personal interest in the creation of his first new-build yacht. The classical interiors were created in collaboration with Turkey’s leading yacht interior outfitter, Ulutas, located a 10-minute drive from Turquoise’s Pendik headquarters and a collaborator with the shipyard since 1998. With H2’s renderings and 3D models in hand, the Turquoise team created all the workshop drawings. Turquoise’s interior department has a dedicated marble team that got a chance to express its talents in Jewels. The owner came frequently to Turkey and went on shopping expeditions to select the materials.

Interior of the owner's bathroom

ERAY ALTAY

ERAY ALTAY

View of the guest corridor

ERAY ALTAY

ERAY ALTAY

Item 1 of 2
Interior of the owner's bathroom

ERAY ALTAY

ERAY ALTAY

View of the guest corridor

ERAY ALTAY

ERAY ALTAY

The yacht features nine guest cabins, including the owner’s suite, which are distinguished by their rich colour themes; The elaborate mirrors in the owner’s suite required the highest level of quality control at the design and manufacturing stage

“He has six daughters,” says project manager Yurdakul, and he wanted each cabin to enjoy its own identity. Each one has a consistent feel but different colour scheme, from rich fabrics to marbles in the showers. At the marble shop, the team followed the client, iPad in hand, in case he needed a way to remember the original rendering as he walked through each row to select stones that ranged from amazonite marble to honey-hued onyx. The selections were made over a very full day.

“I think he [had] worked with the interior designer [for] so long that he remembered most of the designs very clearly,” says Sukas. “Everything is harmonised.” Then they went shopping for fabrics and loose furniture, which took a couple of different outings. It all happened quickly, especially considering the design complexity. “It was the first time the owner was so much a part of the process, from the selection of stones and fabrics,” says Sukas. “We enjoyed it as a team.”

Although a few pieces were built in Italy and shipped to Turquoise during the final commissioning stages, almost everything on board was either sourced from or made in Turkey. Most of the fabrics and draperies, for instance, came from Persan, a company established in 1975 by three brothers and now a hot brand for luxurious interiors.

To go along with the classical aesthetics and numerous touches of turquoise on the inside, gold was the go-to colour. It was also the owner’s choice.

View of the interior staircase

ERAY ALTAYWalnut burr, oak burr and wenge are combined in the staircase. Multiple layers of insulation and floating floors minimise sound and vibration

ERAY ALTAYWalnut burr, oak burr and wenge are combined in the staircase. Multiple layers of insulation and floating floors minimise sound and vibration

“The client was a big fan of gold finishes. This proved challenging for the yard as they needed to experiment with various new gold finishes including metallic paints, gold leaf and gold PVD coatings, which needed very careful handling,” says Bermudez. Many of the pieces required different techniques. “The lion heads are all gold coated,” adds Yurdakul.

Another challenge was ensuring all the bevelled and antique-finish mirrors were consistent in colour and free from any cracks or chips. The quality-control process was more extensive than ever due to the fragility of some of the elements in the elaborate design. The result is stunning and perfectly in line with what the owner wanted. “I believe that is the point of a custom build,” says Yurdakul. That is indeed the point. Turquoise has shown incredible range throughout the years, and Jewels can be considered another gem in its crown.

First published in the October 2023 issue of BOAT International. Get this magazine sent straight to your door, or subscribe and never miss an issue.

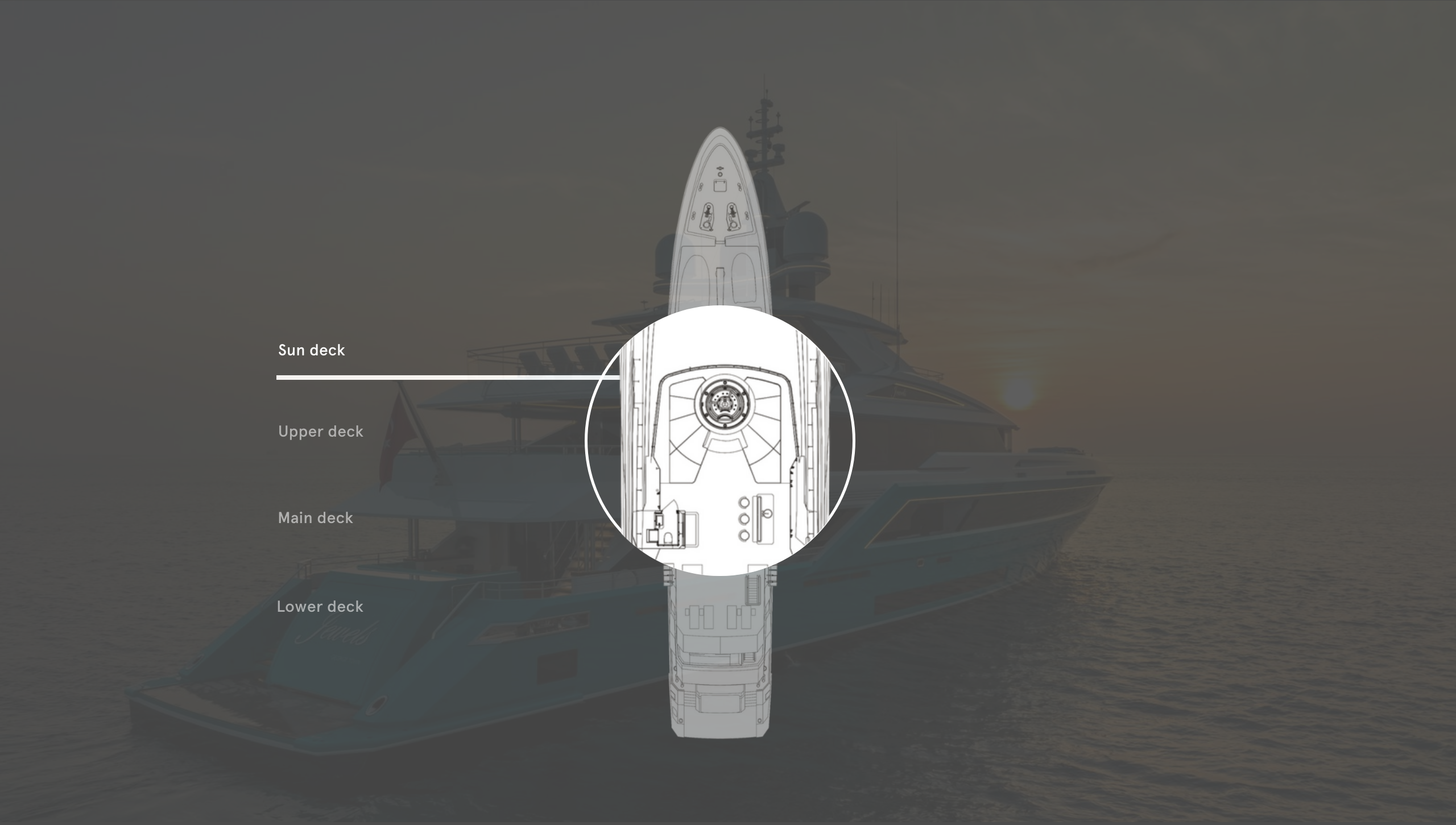

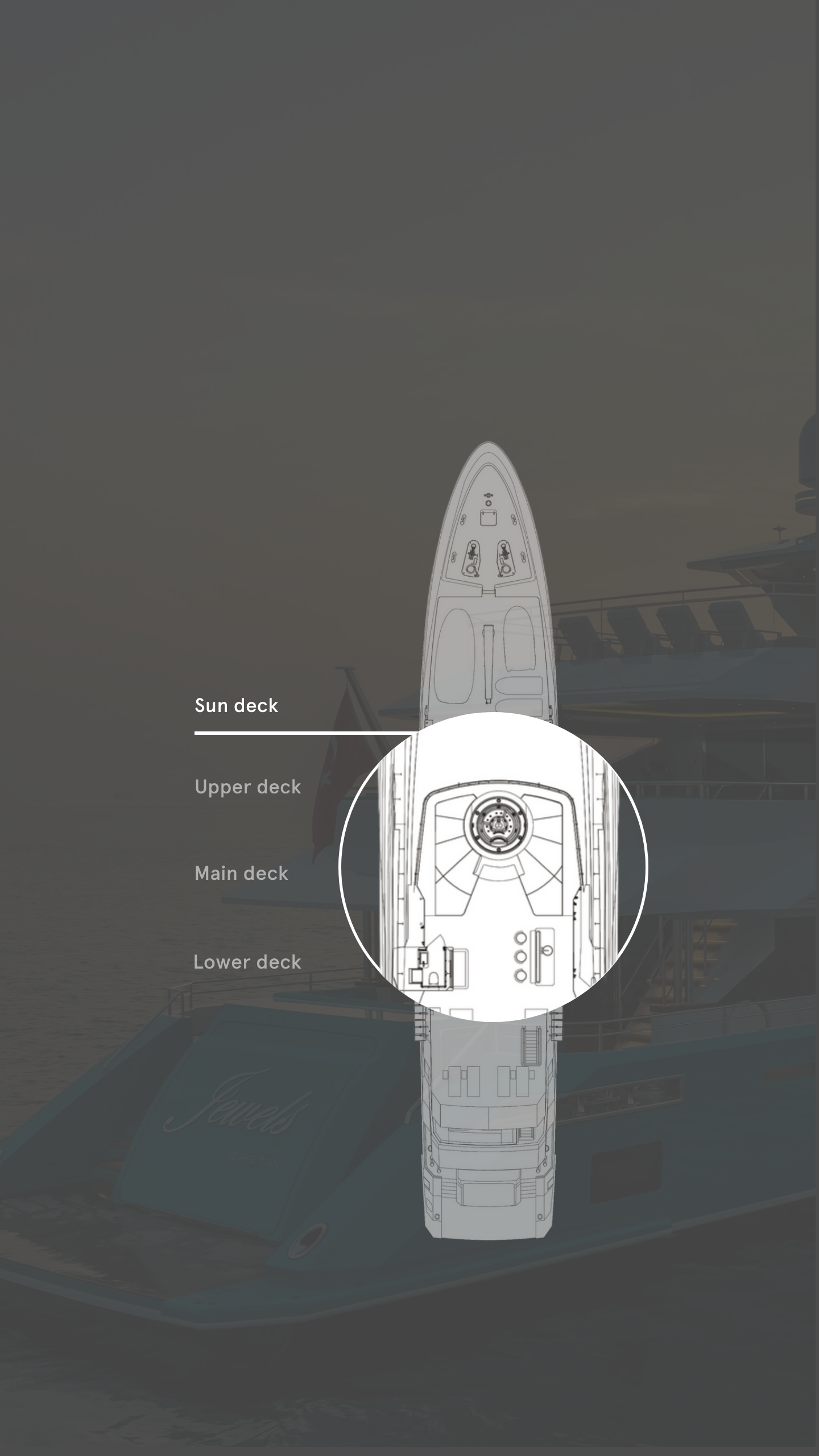

The sundeck is a shaded private area with panoramic view

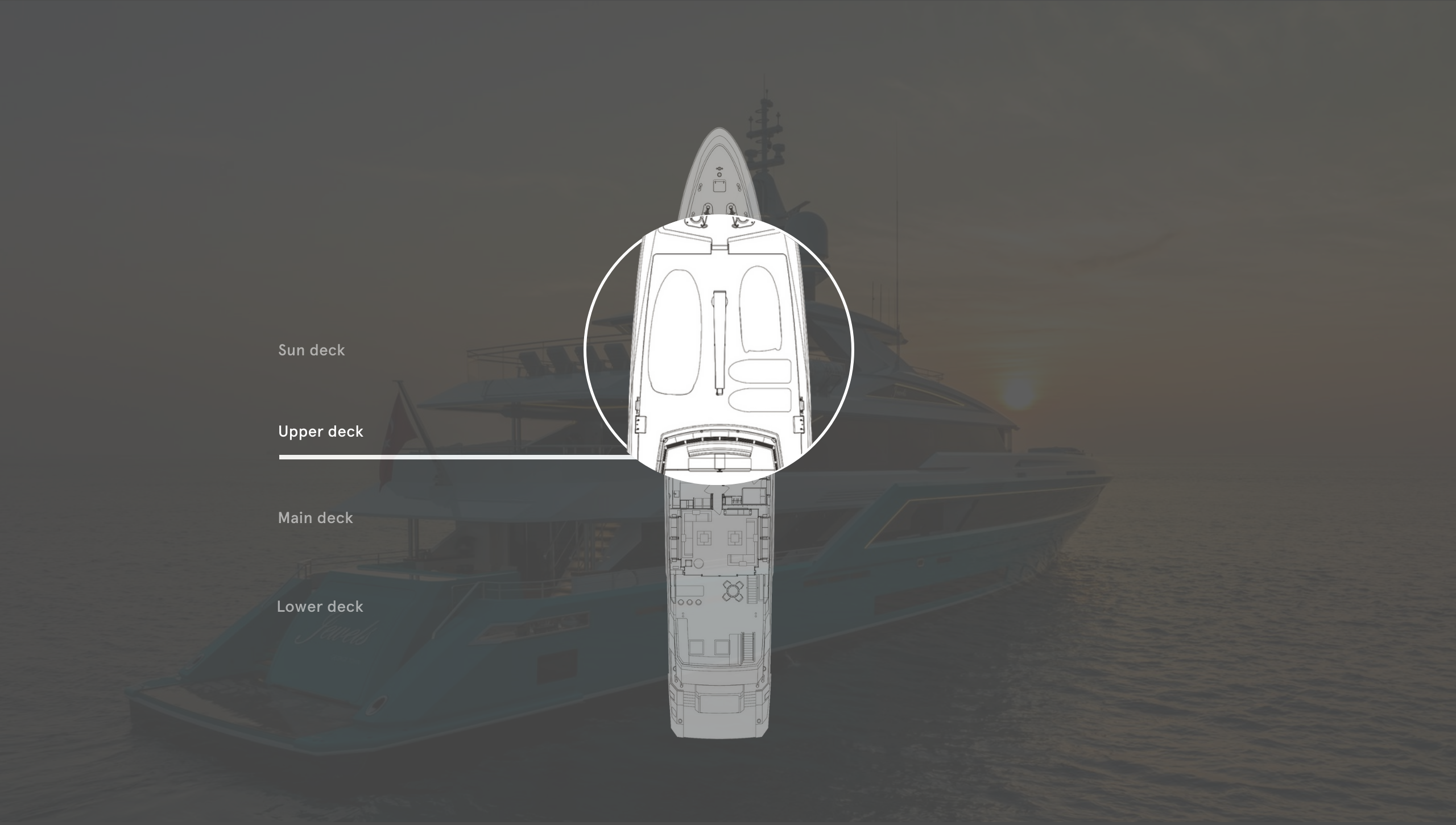

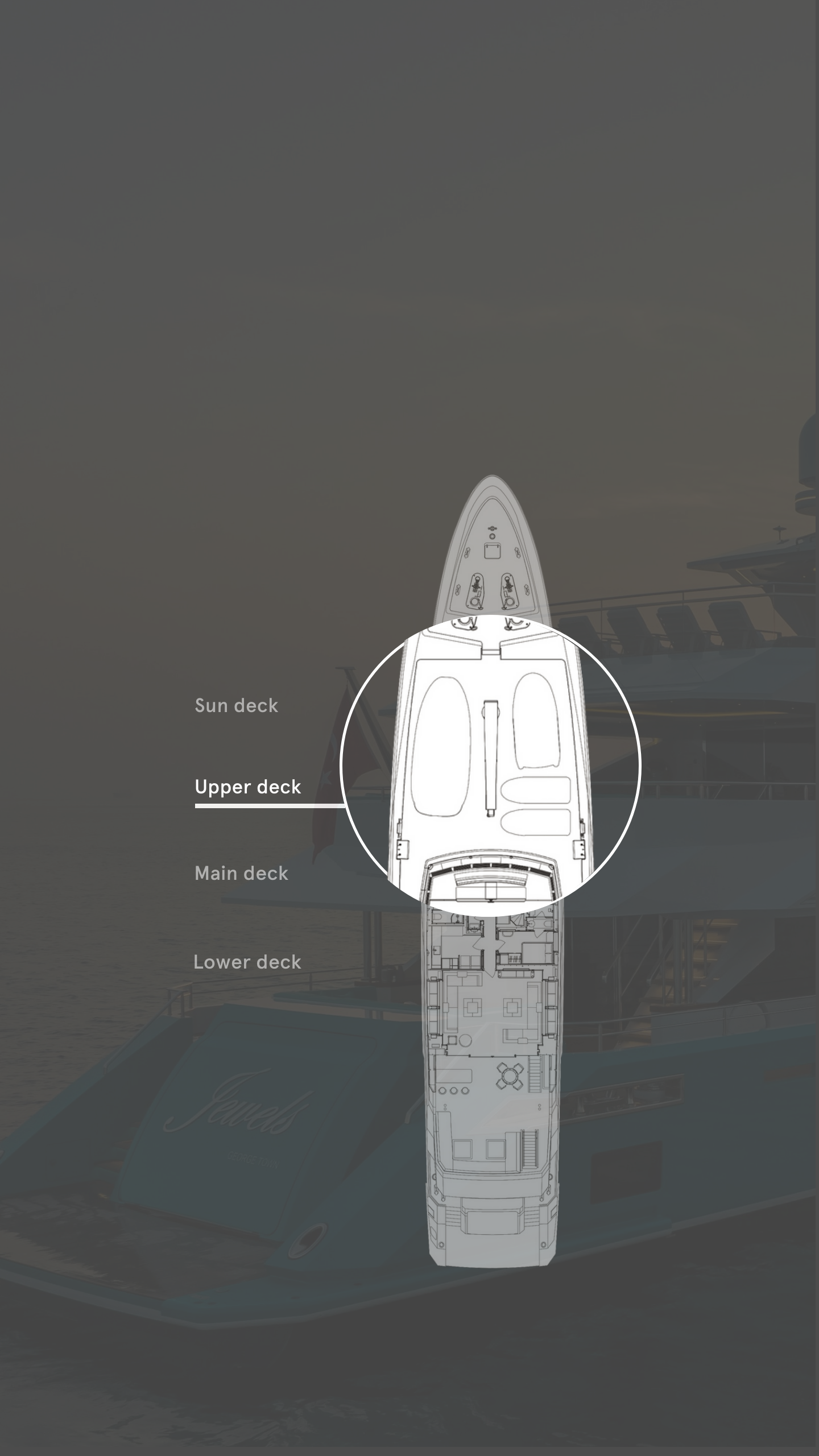

The long bow has plenty of space for tenders and toys

The full-beam design creates 713GT of volume

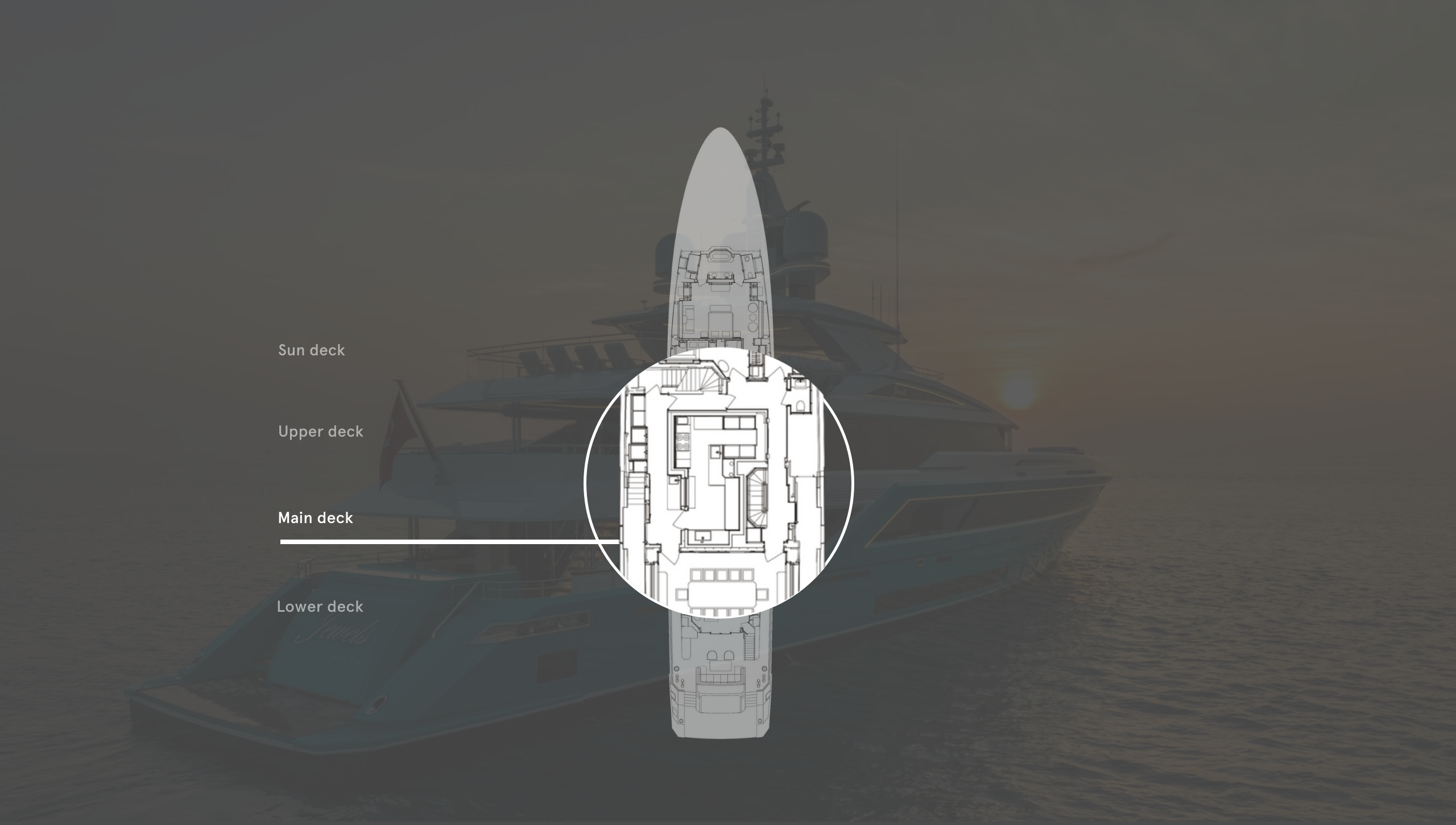

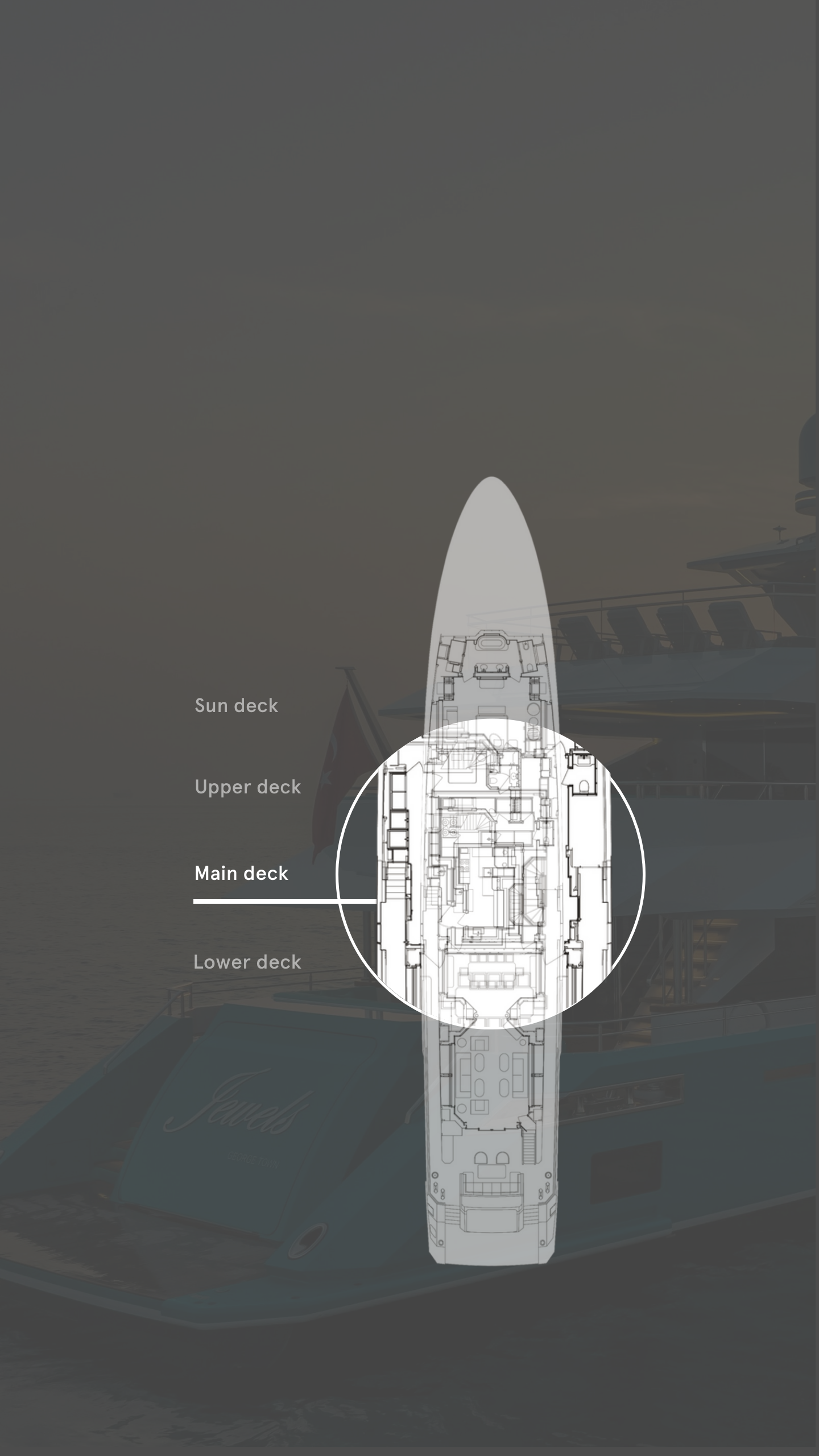

The galley is a central yet hidden feature

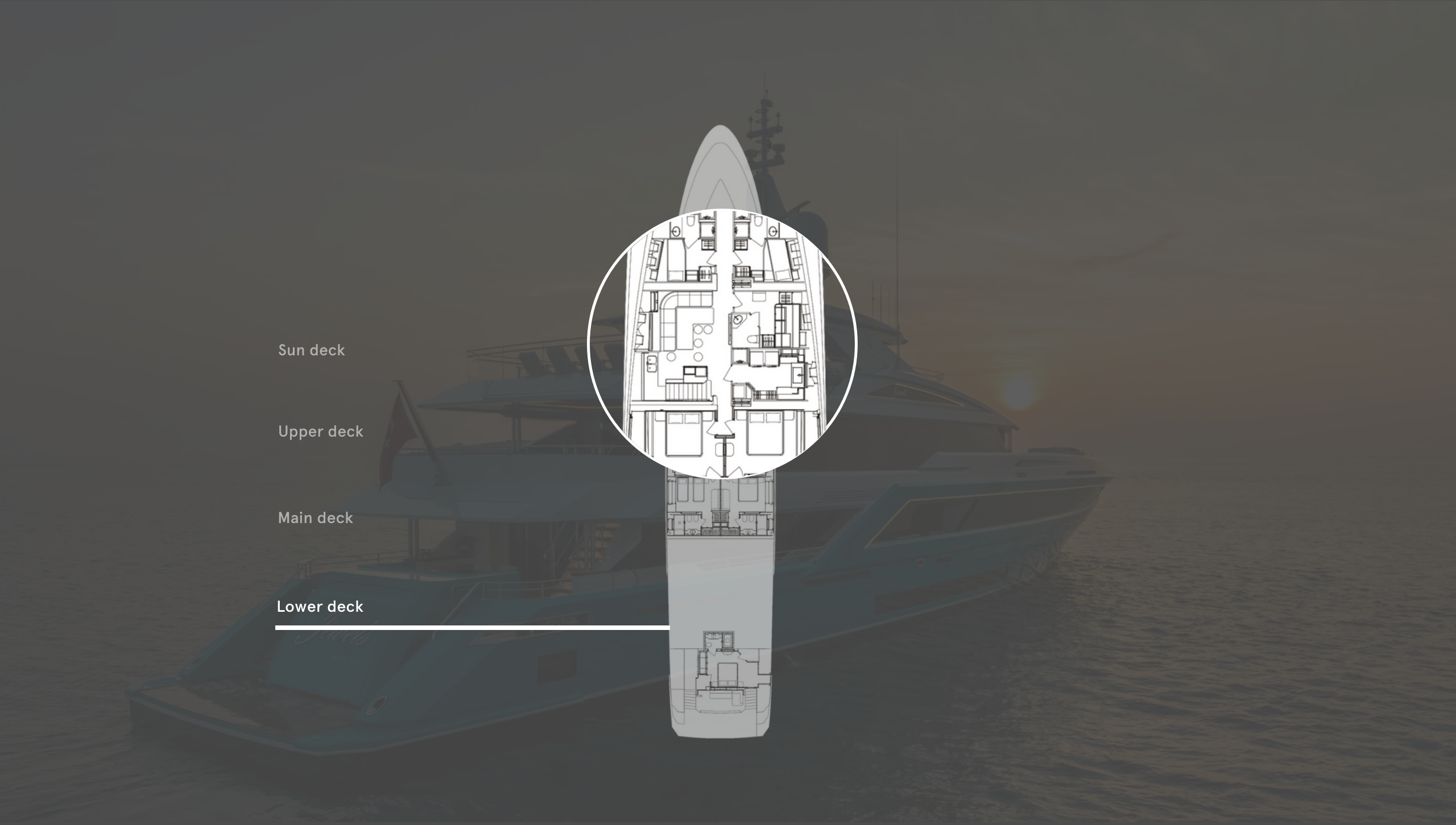

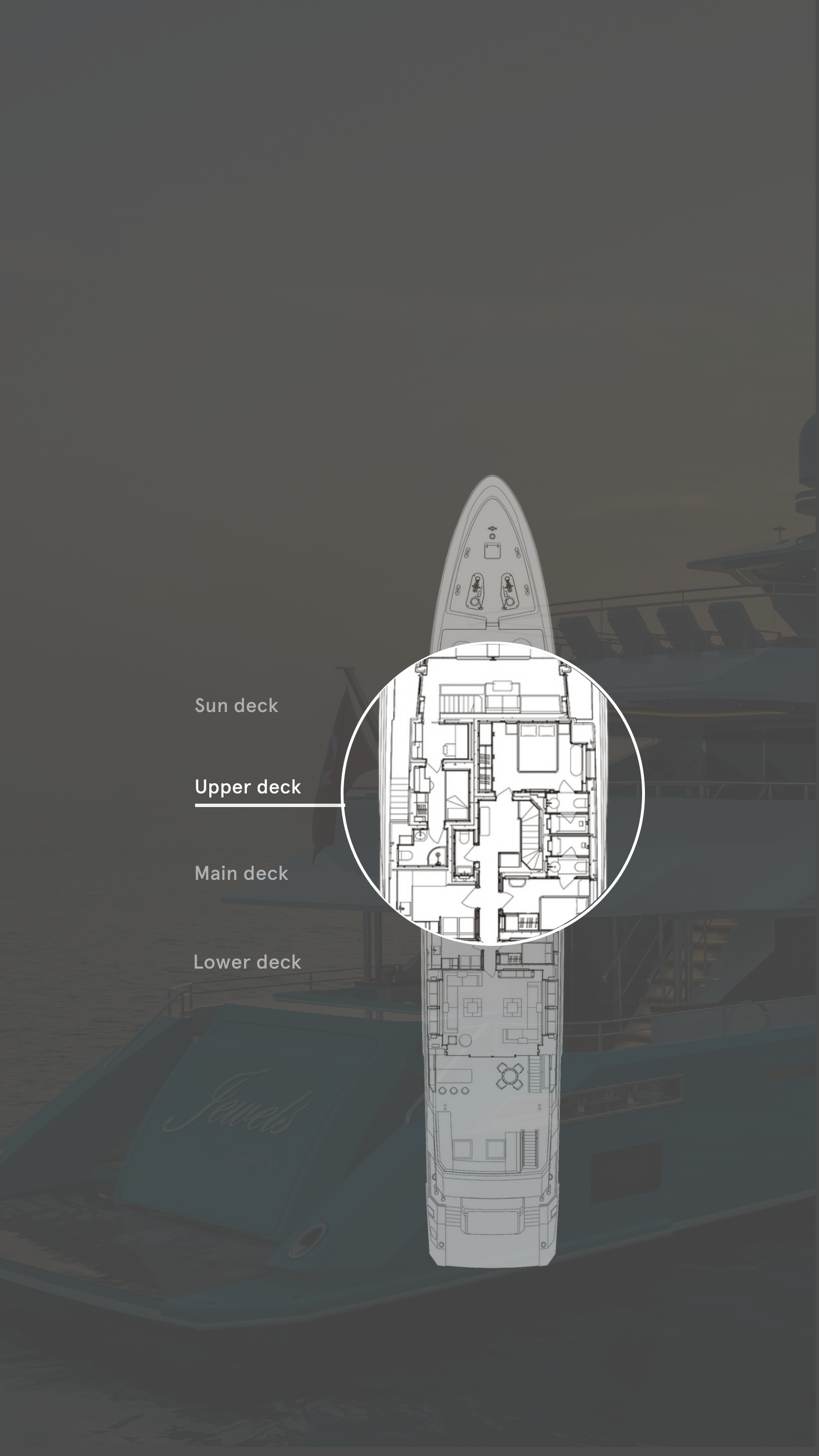

From the mess, the crew can easily access the upper decks and lower deck guest cabins

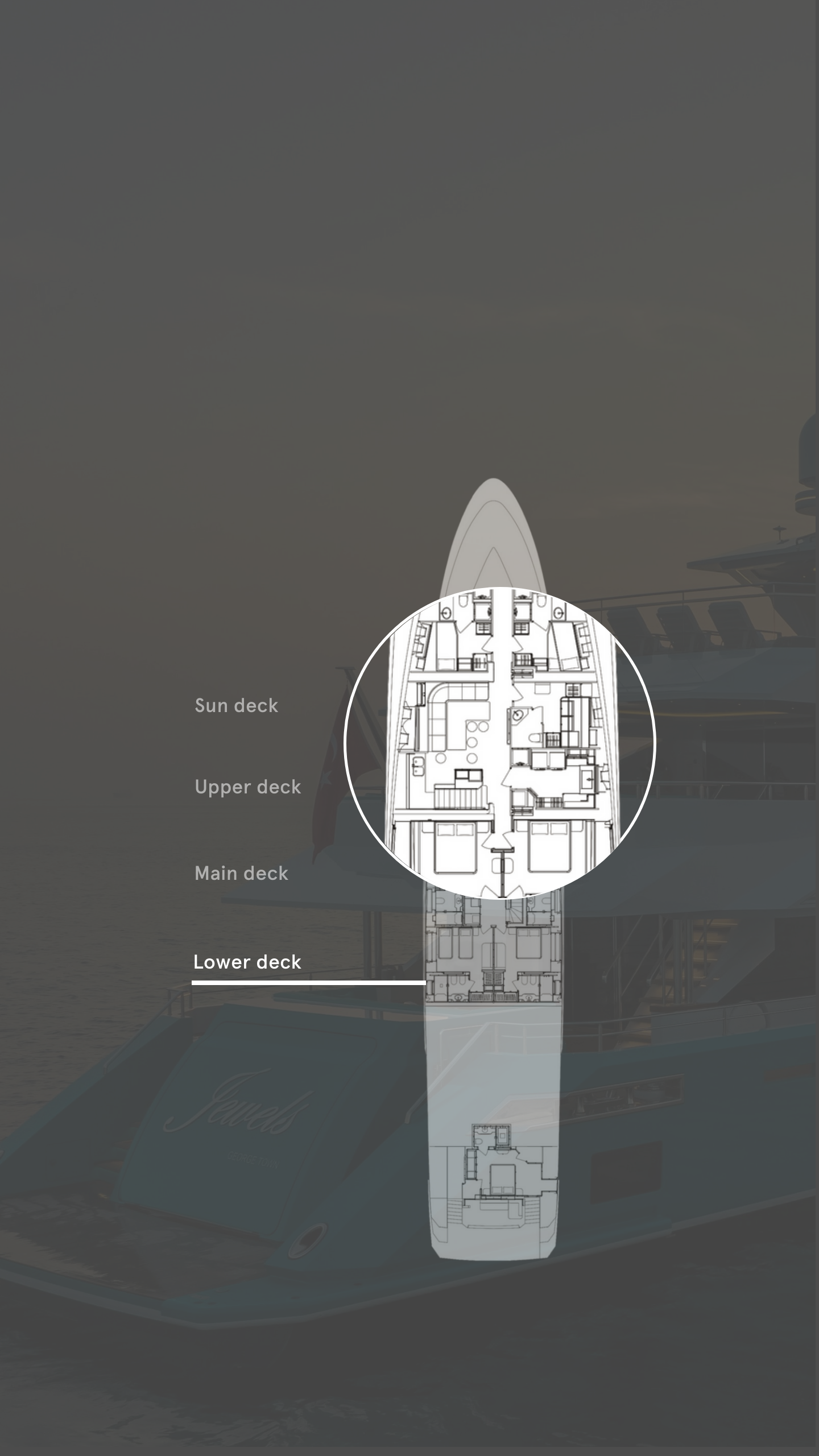

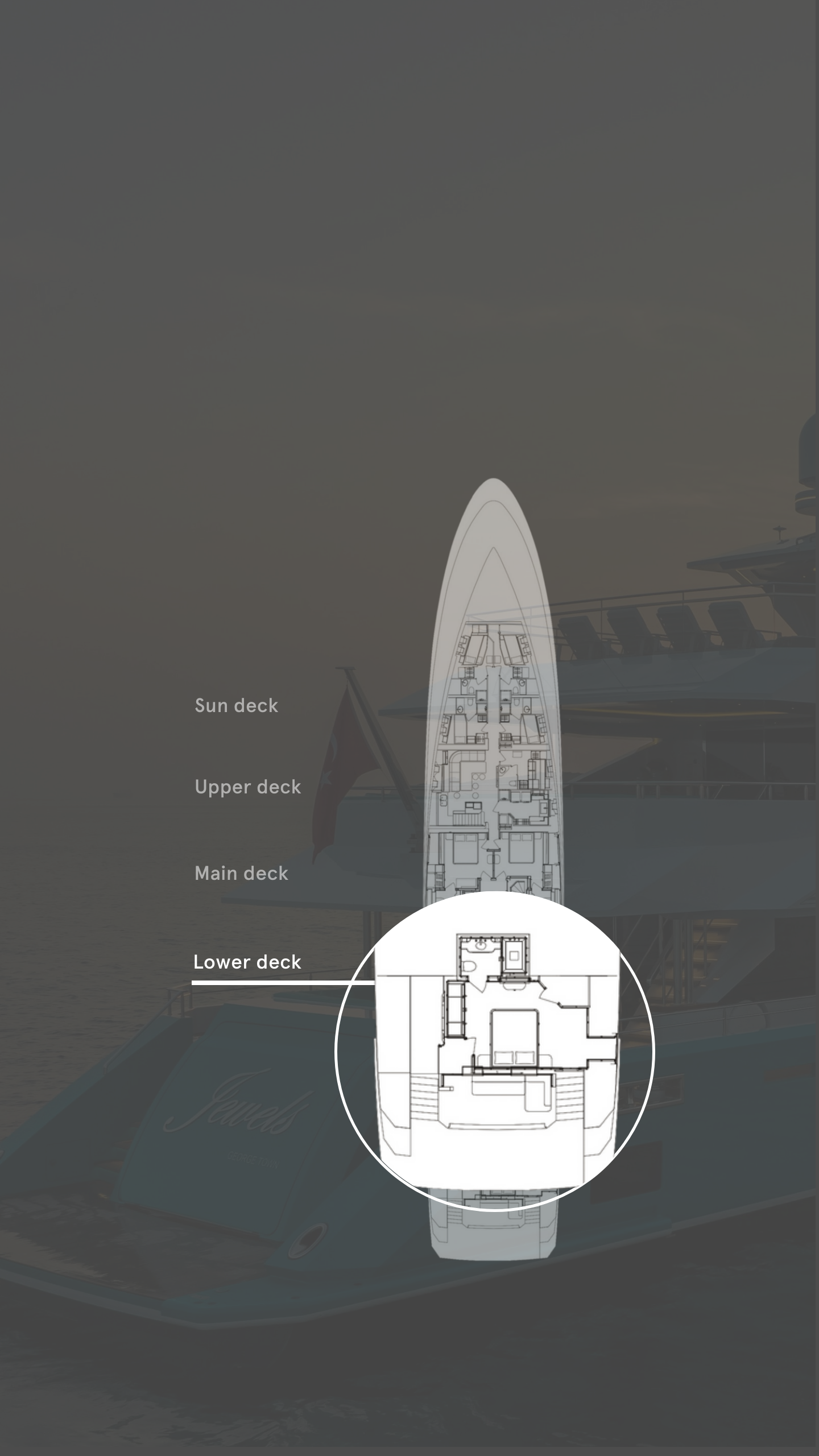

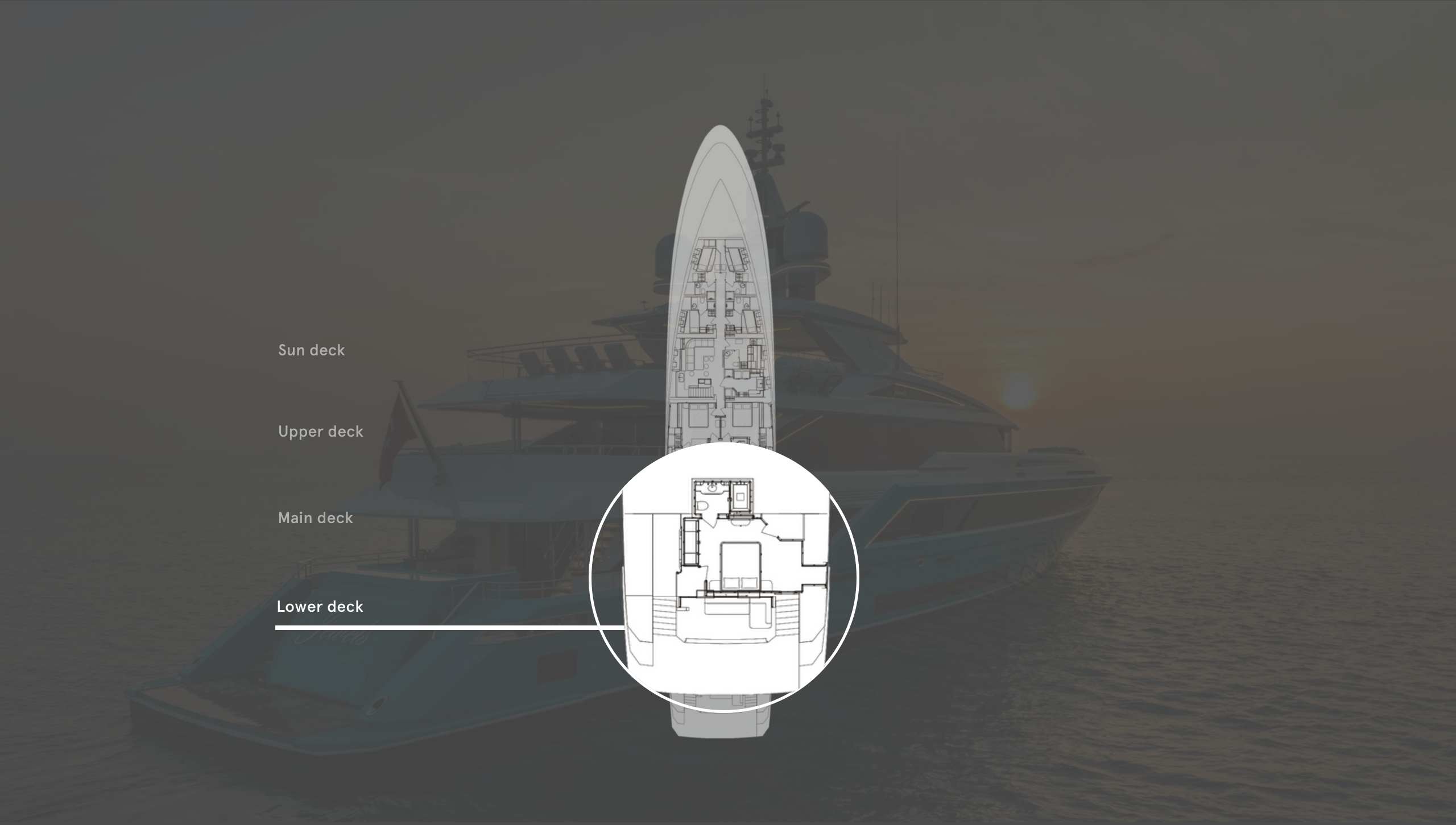

This guest cabin was carved out of the original beach club

LOA 53m

Gross tonnage
713GT

LWL 46.85m

Engines
2 x 1,300hp CAT C32

Beam 9.3m

Generators
2 x 150kW CAT C7.1

Draught 3.25m

Speed (max/cruise)
15/12 knots

Range at 12 knots
4,200nm

Owners/guests 12/18

Fuel capacity
70,000 litres

Crew 11

Freshwater capacity
20,000 litres

Construction
Steel hull; aluminium superstructure

Naval architecture
Turquoise Yachts

Builder/year
Turquoise Yachts/ Istanbul, Turkey

Exterior design
DeBasto Designs

+90 214 493 8248 info@bturquoiseyachts.com turquoiseyachts.com

Interior design
H2 Yacht Design
